Proctor

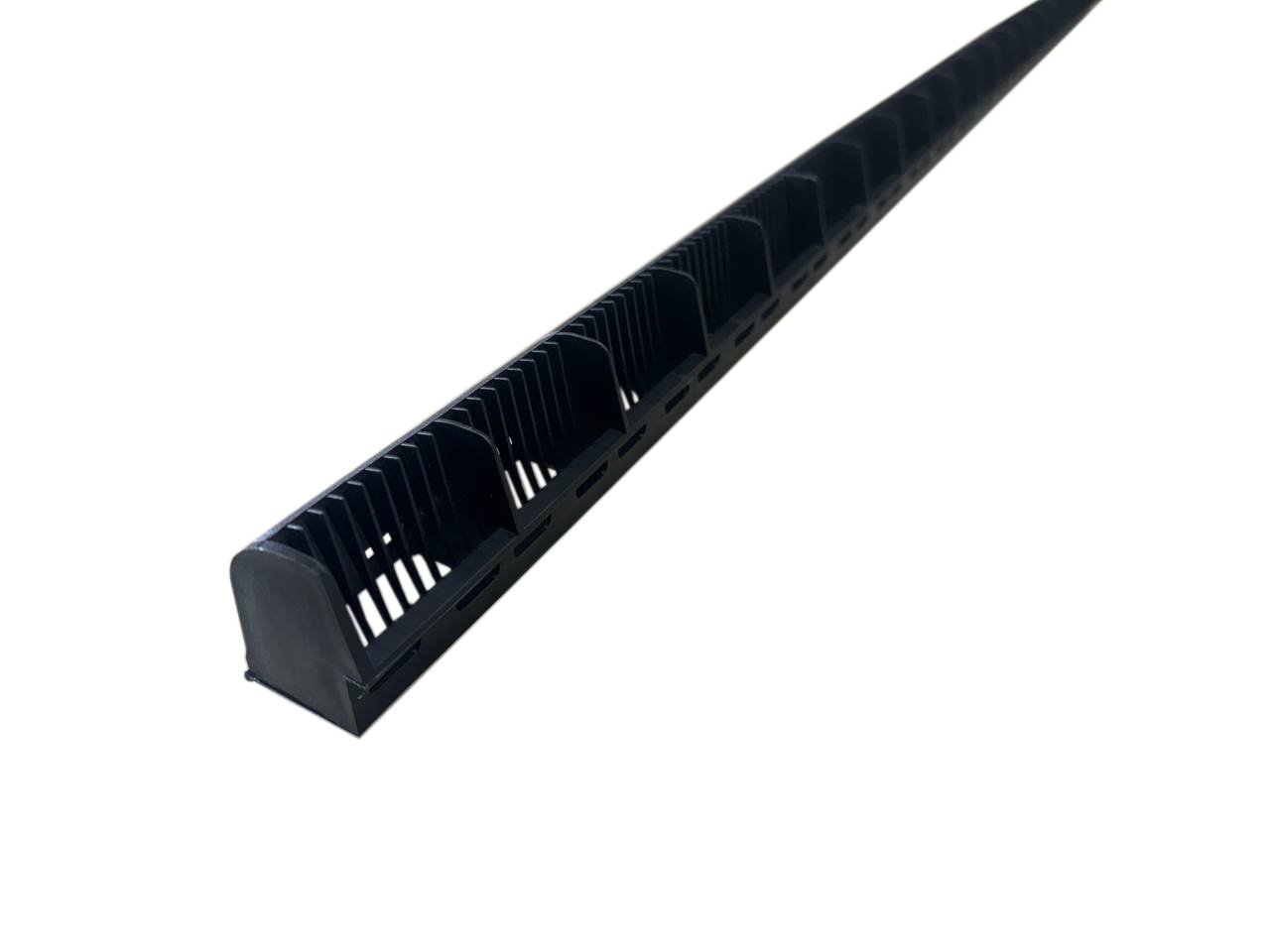

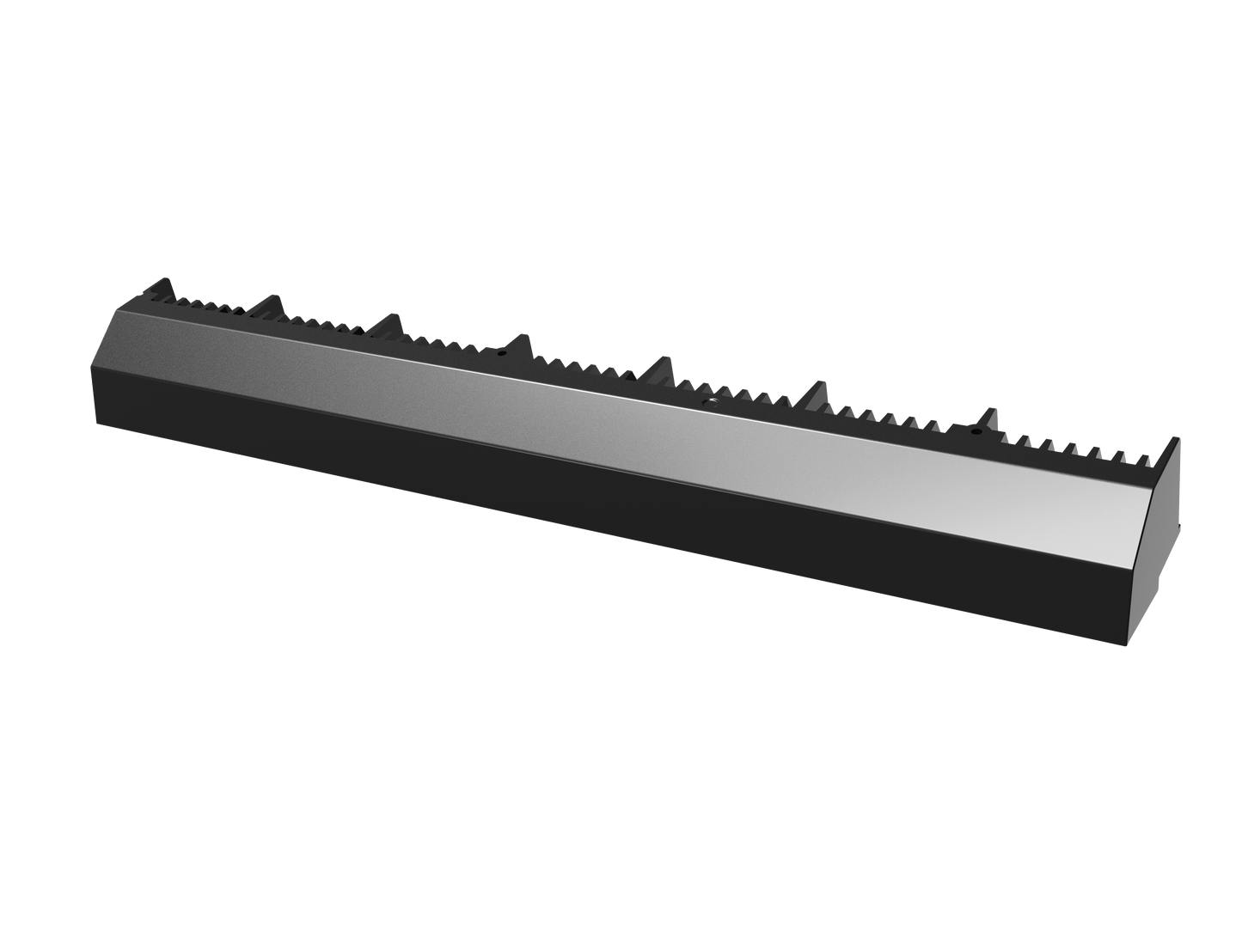

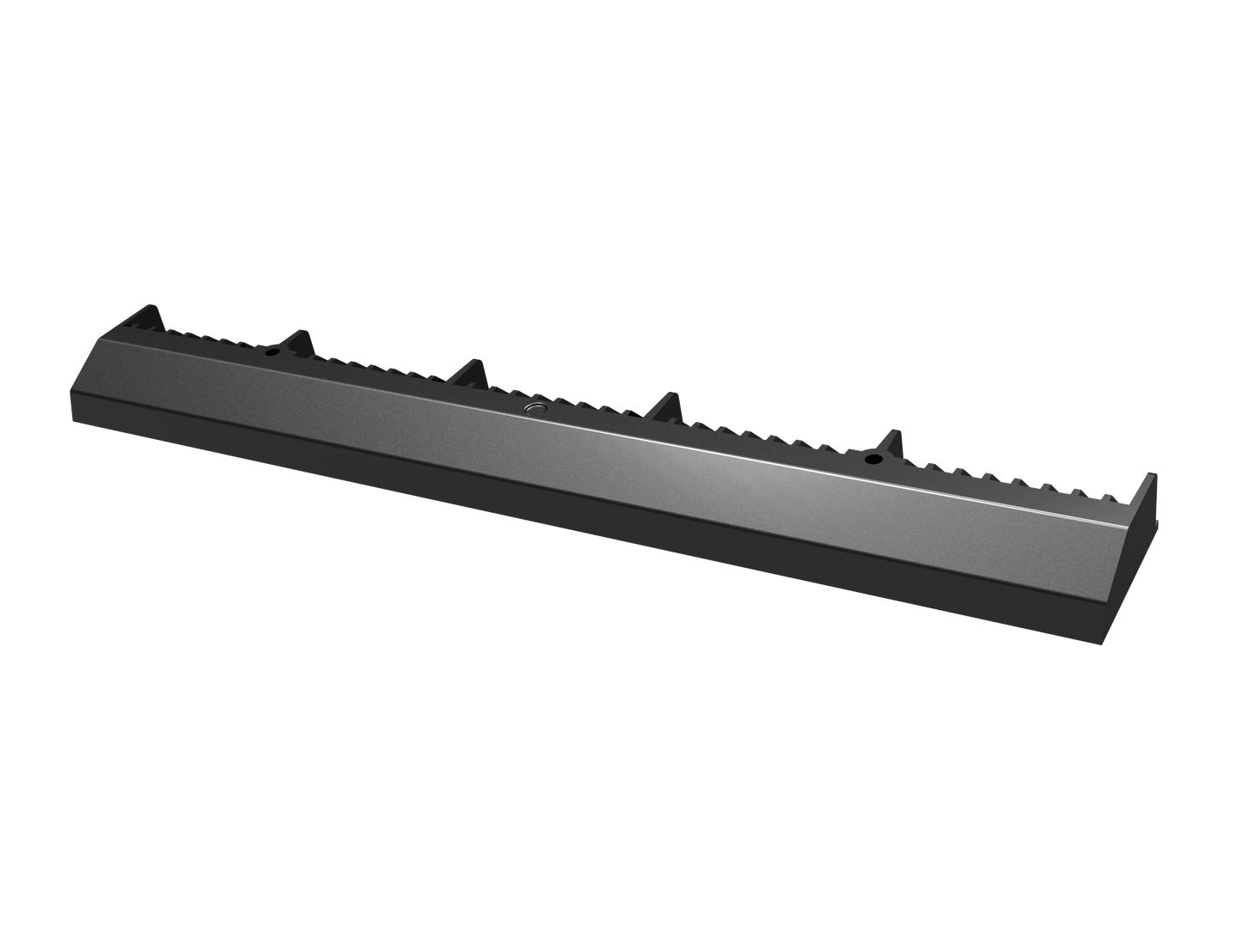

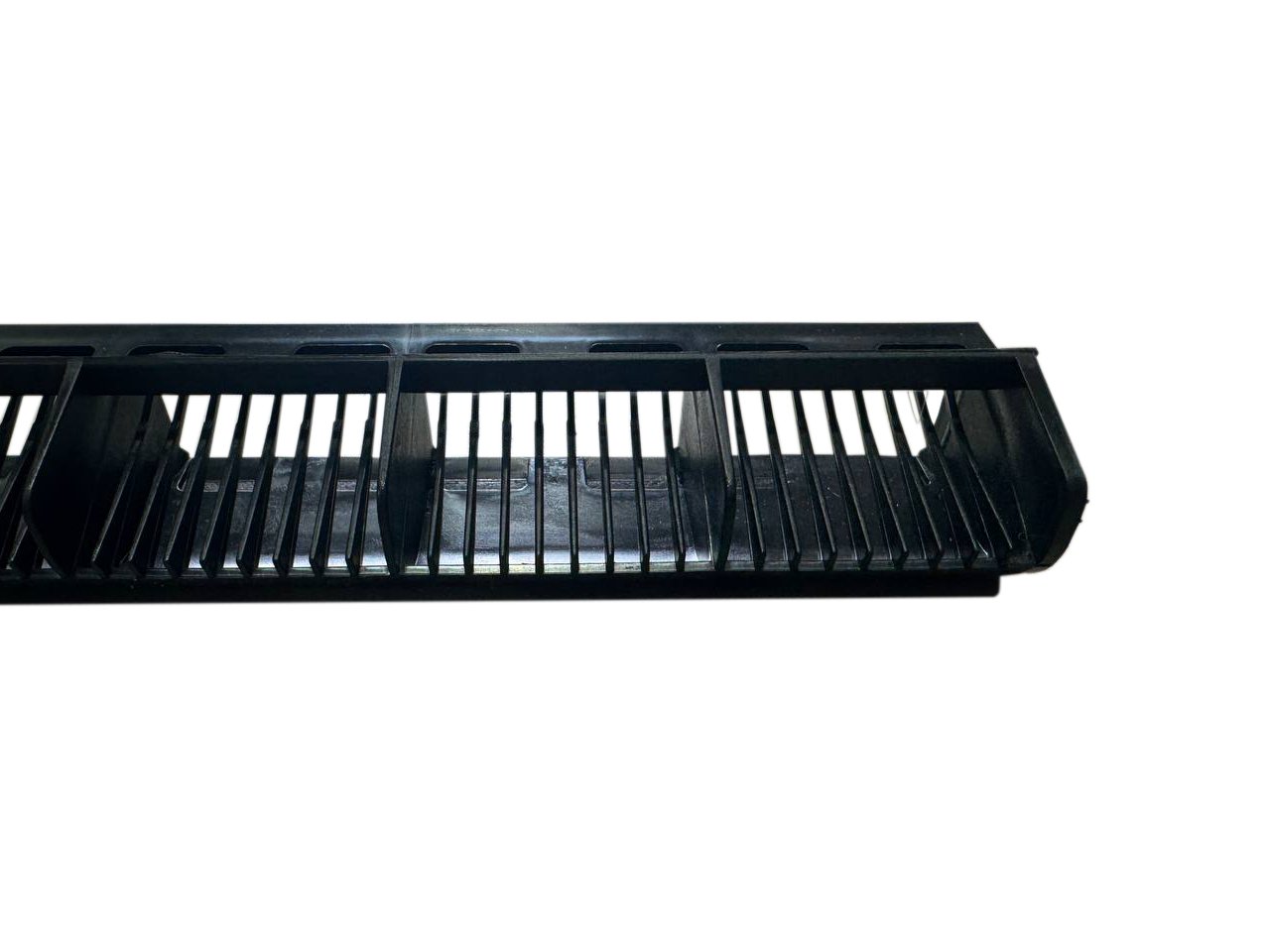

ProctorVent Over Fascia Vent
ProctorVent Over Fascia Vent
1 review
Regular price
$142.00 AUD
Regular price
Sale price
$142.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Over Fascia Vent 10mm (FV10) & 25mm (FV25) is the most practical and cost efficient method of ventilating the eaves. It is easy to install, discrete and is compatible with either timber of metal fascias.
Features and Benefits
- ProctorVent Over Fascia Vents provide for the following free open area per linear metre.
- FV10: 10,000mm2/Lm - 25 linear metres per box
- FV25 : 25,000mm² /Lm - 20 linear metres per box
- Assists as part of a passive roof ventilation system in releasing heat from the roof space.
- Will dramatically reduce condensation risk as part of the complete ProctorVent roof ventilation system.
- Forms part of a passive ventilation system that works year round with no moving parts or energy consumption.
- Easy to install.
- Discretely hidden behind the gutter.
- Insect proof - 4mm apertures prevent ingress of nesting insects.
Applications / Scope of use
- In accordance with the requirements of NCC 2019 ventilation of roof spaces, NCC 2022 roof space ventilation, or CBOS Condensation in Buildings – Tasmanian Designers’ Guide - Ver. 2
- Suitable for new builds or renovations as part of the ProctorVent system.
- For metal and tiled roof installations.
- Compatible with timber or metal fascia.
- To ensure continuous and unimpeded airflow past the insulation, should be used in conjunction with the ProctorVent Eaves Baffle Vent (RR650) for traditional roofs and/or the ProctorVent Vented Batten (VB10 - 10mm or VB20 - 20mm).
Installation
- ProctorVent FV25/FV10 should be screw fixed (for metal fascia) or nail fixed (for timber fascia) to the top of the fascia board through the fixing holes provided along the full length of the eaves.
- Ensure screws meet metal facia manufactures warranty requirements.
- FV25/FV10 over fascia vents are located above the fascia, under the sarking membrane and where applicable with an eaves flashing above the over fascia vent.
- The over fascia vents butt up to each other along
the entire run of fascia. - FV25/FV10 over fascia vents may require some adjustment to fascia or roof heights depending on the type of over fascia vent selection, the type of fascia and/or the combination of ProctorVent products being installed.
Please refer to ProctorVent FV10/25 PDS here
Physical weight: 4kg
Cubic weight (for shipping): 11kg
