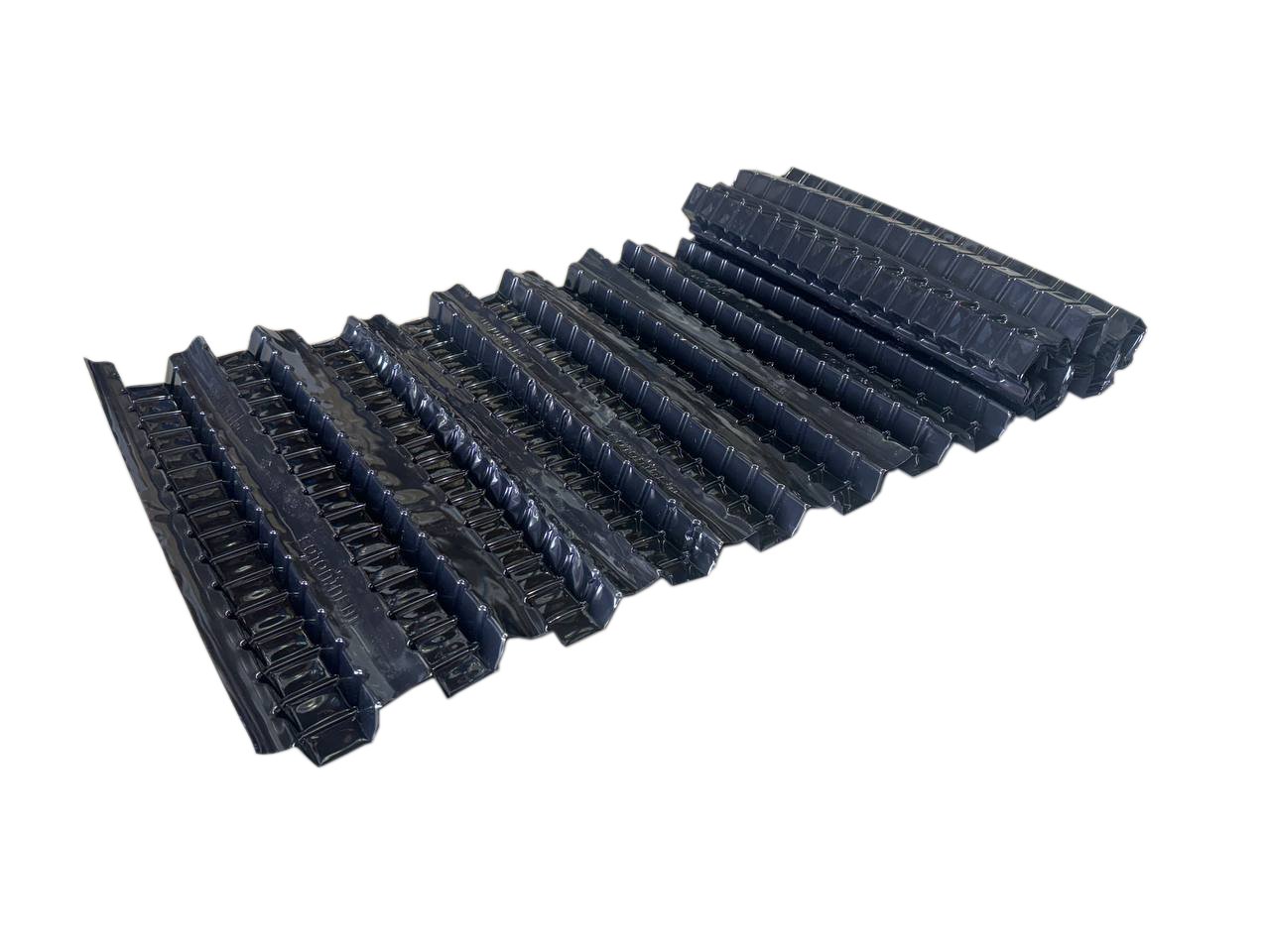

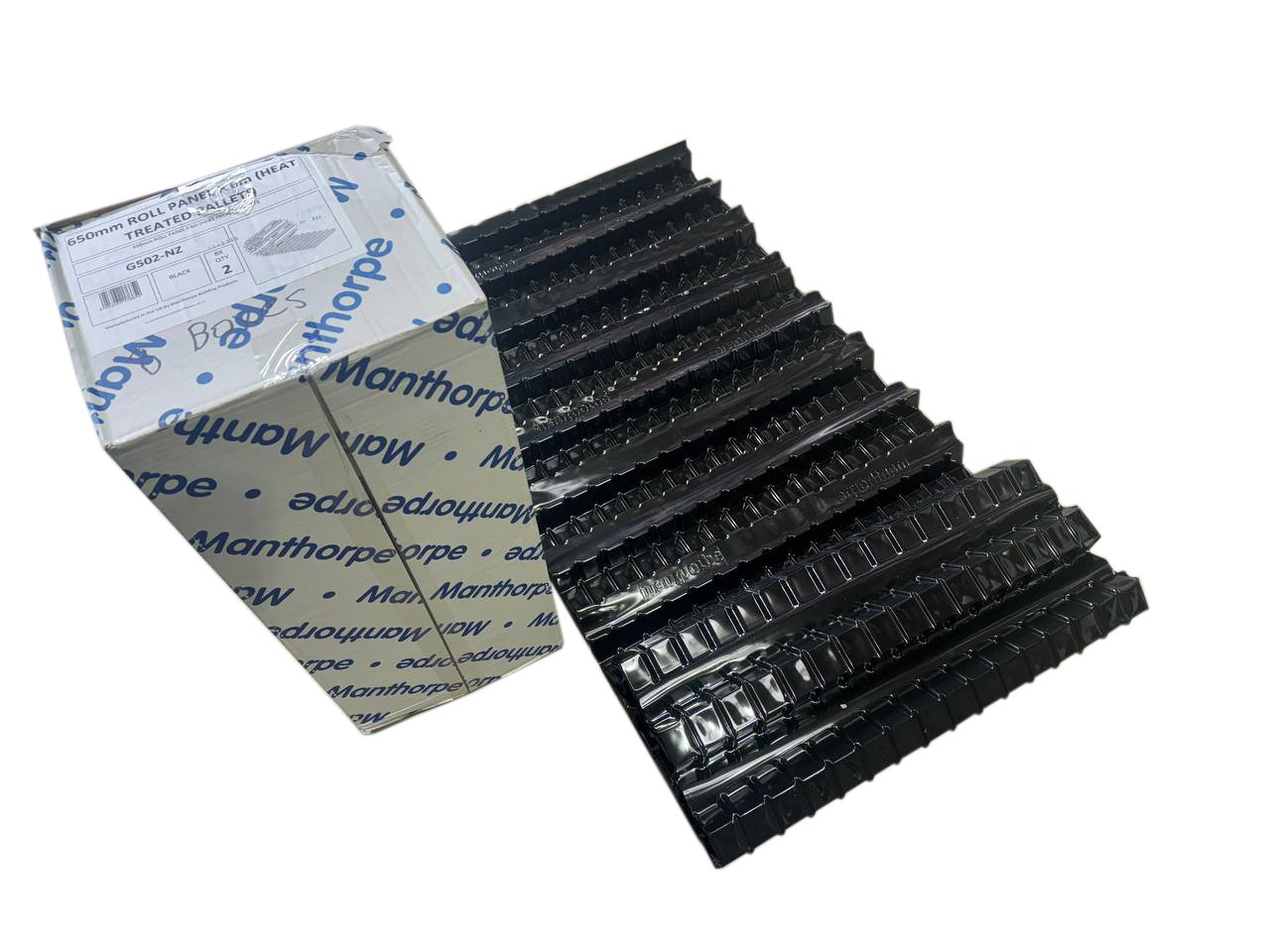

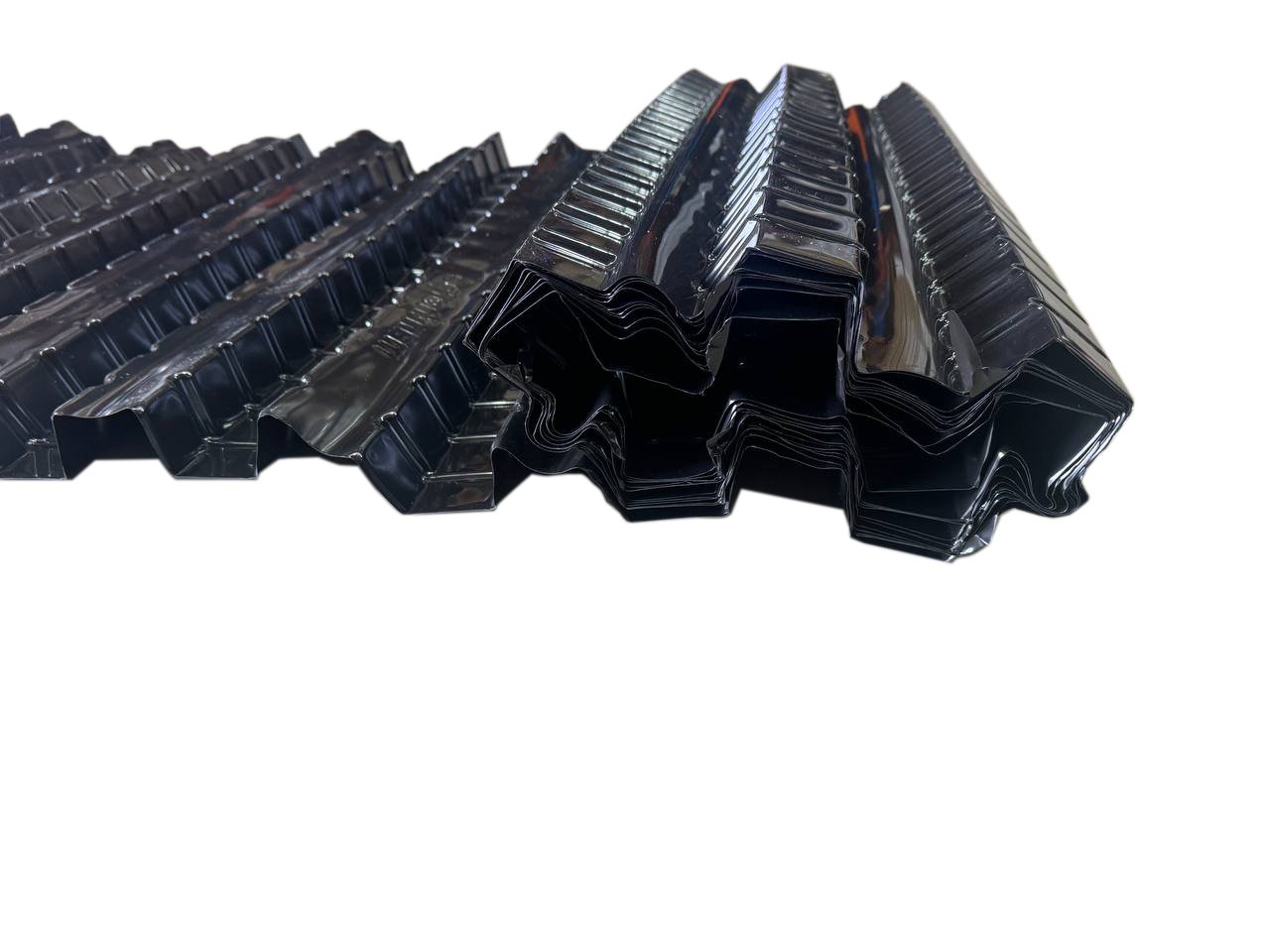

ProctorVent Roll Panel Vent - Eaves baffle (12 linear metres)
ProctorVent Roll Panel Vent - Eaves baffle (12 linear metres)
Regular price
$212.00 AUD
Regular price
Sale price
$212.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Passive roof ventilation
The ProctorVent Roll Panel Vent RR650 is designed to maintain a continuous 25mm air gap at the eaves between the underside of the roof sarking and ceiling insulation, providing a calculated flow of air into the roof cavity unimpeded by ceiling insulation.
Features and Benefits
- Will dramatically reduce condensation risk as part of a complete passive roof ventilation system.
- Suitable for new build and roof renovation projects.
- Suitable for metal and tiled roofs.
- Easy to install.
- Ideal for trussed roofs of any degree pitch.
- Extra width allows for better coverage for low pitch and deep insulation applications.
- For use with glass wool, polyester or blown insulation.
- Reduces heat loss from poorly installed insulation.
- Protects insulation from wind washing.
Applications / Scope of use
- In accordance with the requirements of NCC 2019 ventilation of roof spaces, NCC 2022 roof space ventilation, or CBOS Condensation in Buildings – Tasmanian Designers’ Guide - Ver. 2
- Suitable for new builds or renovations as part of the ProctorVent system.
- For metal and tiled roof installations.
- Compatible with timber or metal fascia.
- To ensure continuous and unimpeded airflow past the insulation, should be used in conjunction with the ProctorVent Eaves Baffle Vent (RR650) for traditional roofs and/or the ProctorVent Vented Batten (VB20) for cathedral roofs.
Installation
- Lay the ProctorVent RR650 castellated profile across the top of the roof trusses/rafters.
- Castellations are designed for timber trusses but can be applied to metal framing.
- RR650 should be rolled out across the roof trusses, parallel to the fascia and directly above the wall plate.
- RR650 should be rolled out the full length of the eaves and simply adjusted with the castellated profile aligning with the roof truss/rafters.
- RR650 should not be pulled excessively, i.e. the shape of the castellations should be maintained.
- Nail or staple the RR650 to hold in position.
- RR650 can be positioned between or preferably directly below the purlins/ roof battens.
- In low pitch roofs that have high levels of ceiling insulation it may be necessary to use 2 runs of RR650. In such a case ensure that castellations are aligned and overlap in a shingled manner to ensure that air can flow freely.
Please refer to ProctorVent RR650 PDS here
Physical weight: 6kg
Cubic weight (for shipping calculation): 11.55kg
