ProctorWrap CW-IT External Wall Wrap

Efficiency Matrix

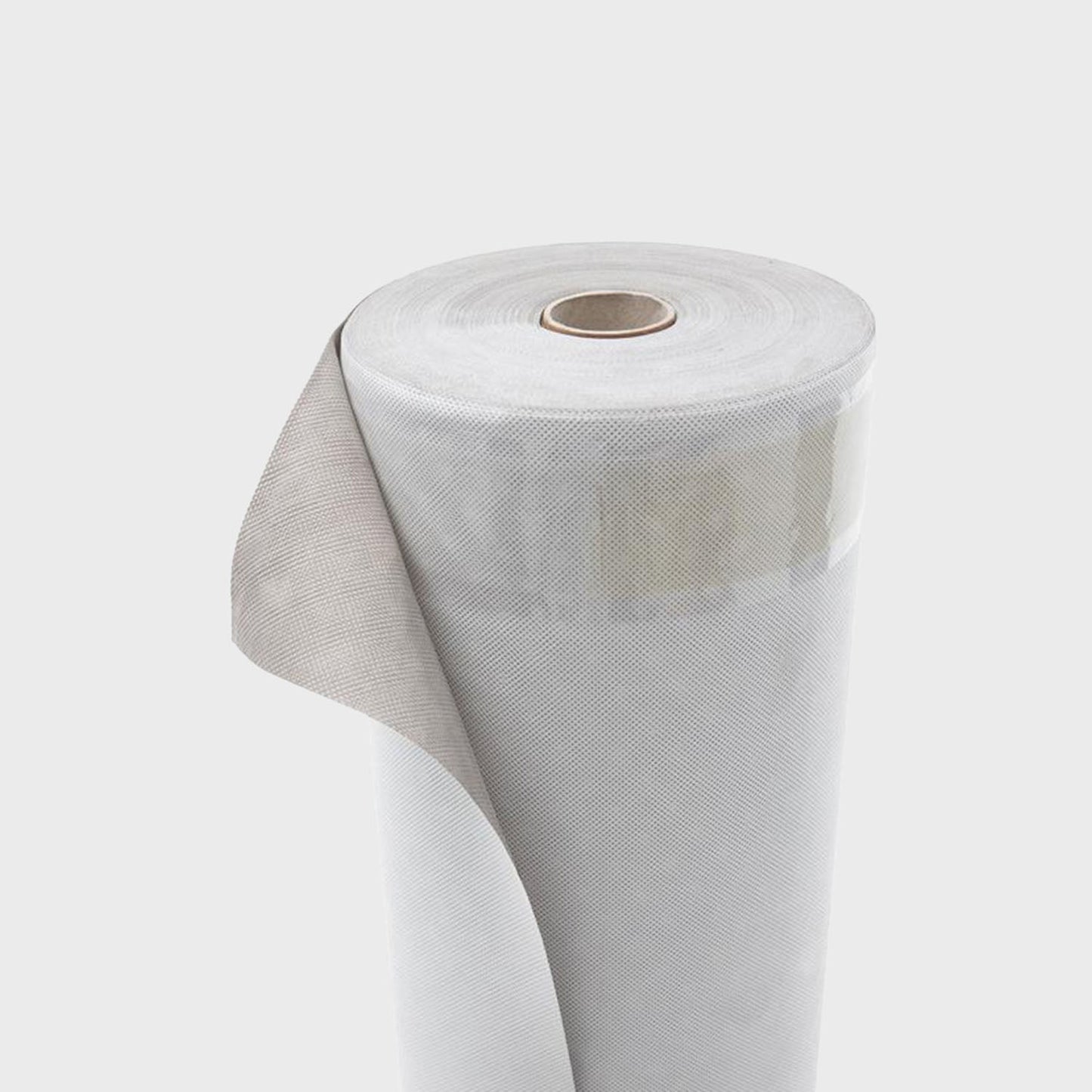

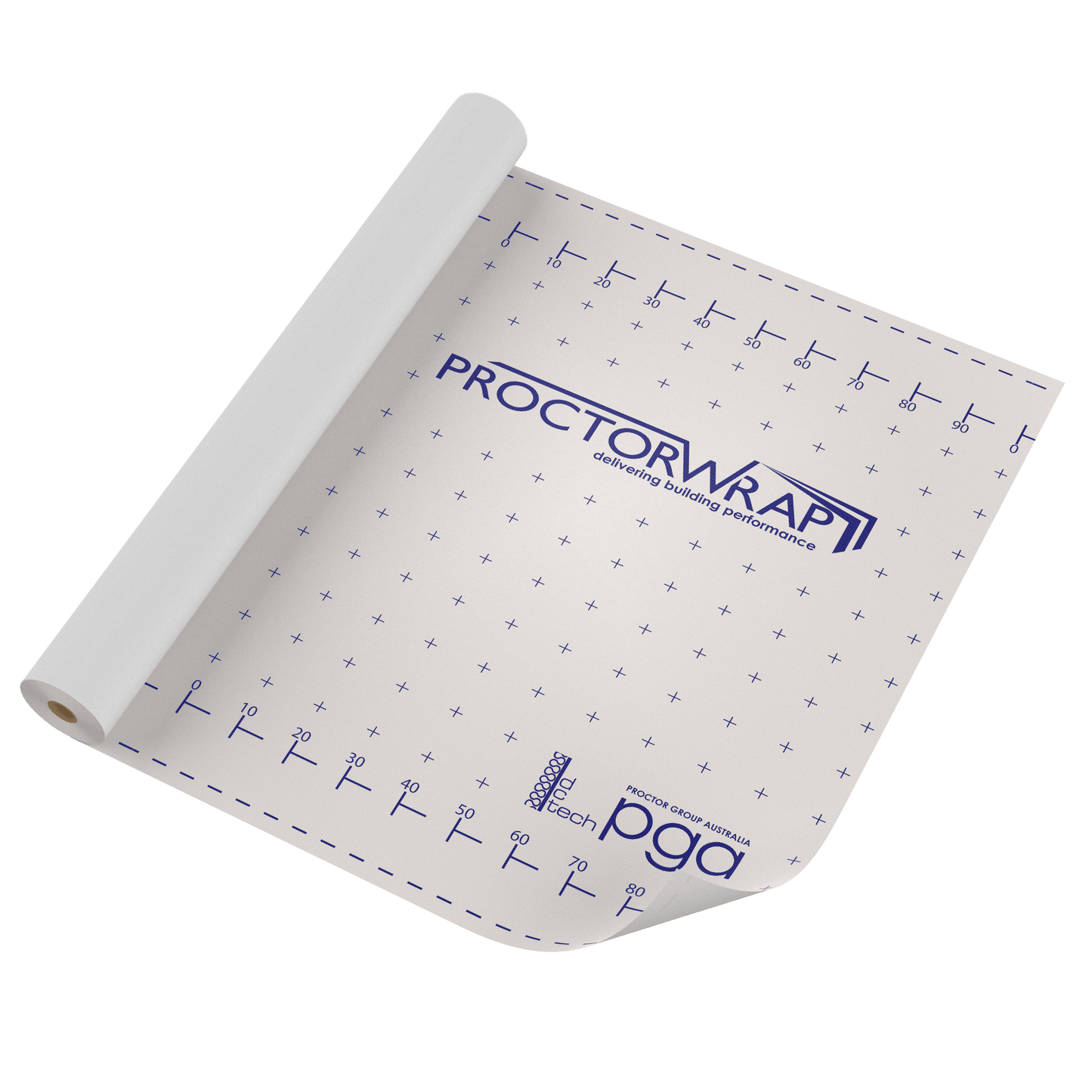

ProctorWrap CW-IT (Commercial Wall with Integrated Tape) is a commercial grade external vapour permeable membrane which provides a weather proof barrier for both commercial (& residential) buildings, when installed optimally.


  • It has Integrated Tape for ease of use
  • Recommended for brick veneer/lightweight clad wall construction
  • It has a triple layer polyolefin non-woven film, used for condensation control
  • Comes in rolls of 1.5 x 50 metres (approx. 75m2 coverage per roll).
  • Recommended for use in cooler climate zones where humidity inside the building will be higher than outside (NCC Climate Zones 2-8)

This product is not recommended for:

  • prolonged exposure (longer than 2 months) to UV or weather once installed
  • for use in tropical climates (NCC Climate Zone 1)

When used together with the ProctorWrap High Tack Tape 60mm (Black) during installation to tape joins, penetrations, and around windows and doors - and ProctorWrap Plasti Grip Washers to fasten to wooden and steel frames - it will help provide a weather proof and air-tight barrier.

Physical Weight: 12kg per roll

Cubic Weight (for calculating postage): 35.1 kg per roll
